Rolling Slat Model 4100

Duty Rating Extra HD or Heavy-Duty
Insulation/R-Value 6.29
Layers 3
Warranty 2-Year Limited
Price $$$$

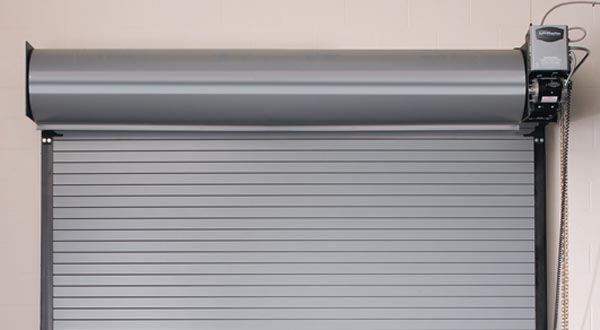

Rolling Slat Model 4100

In applications where climate control is a must, the 4100 Series provides maximum energy efficiency by using a polyurethane core that is foamed-in-place between the exterior and interior galvanized steel skins.

MAXIMUM R-VALUE
Our insulation has an R-value of 6.29 and is of the highest quality available with a flame spread not greater than 25 and smoke generation less than 50.

PRODUCT FLEXIBILITY
The Model 4100 is available in replaceable 22, 20, or 18 gauge insulated flat slats.

Finishes
	White Gray Tan
Operators
Chain Hoist	Electric Operator
Slat Detail
Optional Windows

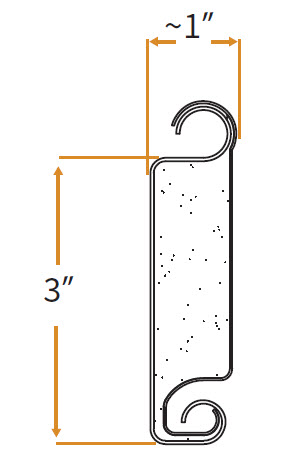

Slat Profile
Insulated Slat
Technical Features
Cast Iron Gears	Structural Steel Angle Guides	Optional Plated Steel Bottom Bar Slide Lock	Optional Motor Operation
Foamed in place Polyurethane Insulation
